Brute Forcing Wake On Lan

Last night, I set a VM (virtual machine) to restore from a backup. I went to bed, and when I woke up, the hypervisor was offline.

I thought to myself, "it must of crashed last night during the restore when trying to start back up, I just need to turn it back on." How Naive of past me to think that.

however, before I take you through my day of shenanigans, lets start at the begining.

What is Wake on lan?

Wake on lan (Wol) is a networking standard that allows computers to be awoken from sleep through sending a magic packet. The "magic packet" is actually just a broadcast frame (ignore fancy layer 2 networking words) that contains the target's MAC address, then repeats it 16x more. because broadcast frames are layer two, it has no idea what a network is, and therefore only works in local networks. (or a layer 2 vpn)

The big problem wasn't the vpn connection in, but rather the mac address. in order to use WOL on the computer I needed the target's computer mac address, having no idea what it was.

The Journey

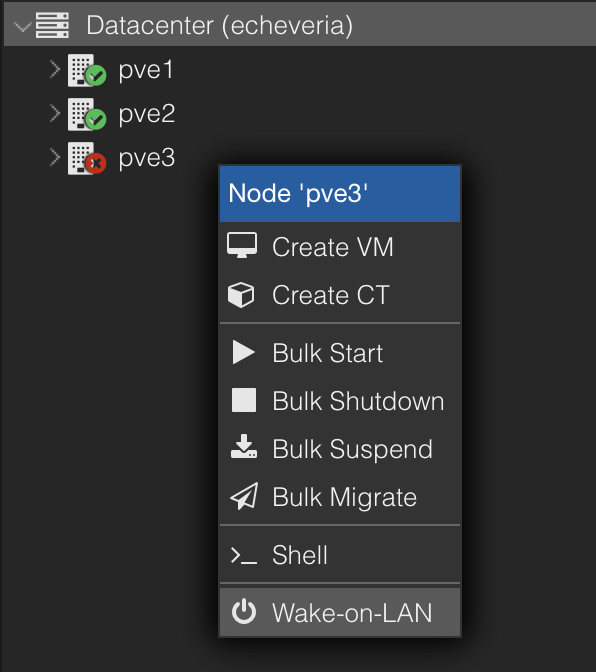

Wait! Proxmox's Web GUI has a built in wake on lan menu! I can just use that!

If only everything was this easy, right?

Nope. Proxmox didn't know the host's mac address, and neither did I.

The wild goosechase had started. I log into my router to check the dhcp server, only to realize I set the hosts I.P. addresses staticly. But not all is lost, I know the vendor mac address 1^ , and I bought pve2 and pve3 in a bundle!

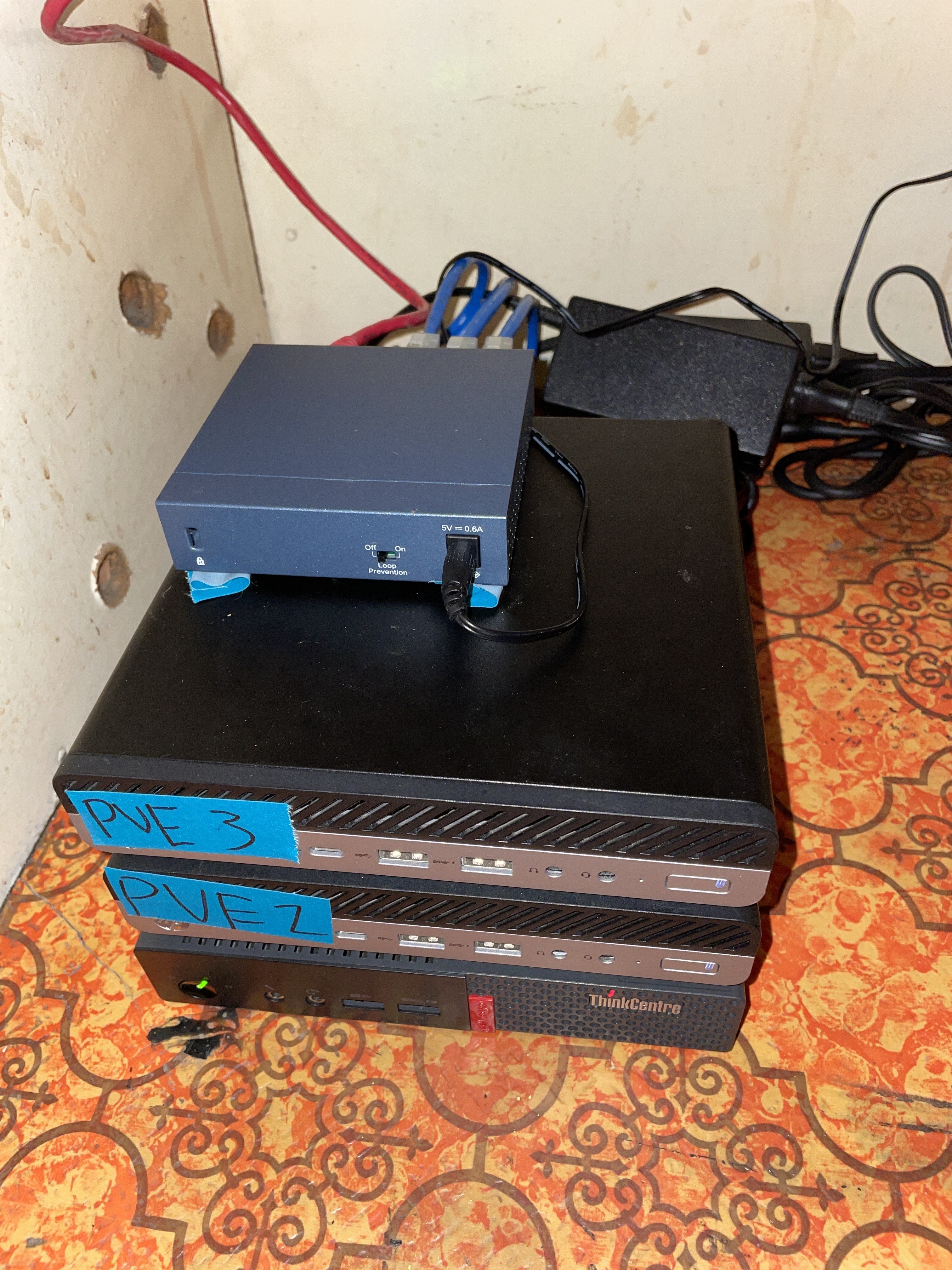

my homelab setup

This left me with two options. I could try either

• searching the last 3 blocks of the mac address (16,777,216 addresses)

OR

• search the last two blocks, hoping that it shares the 4th block because they were bought in a pair from a bulk reseller. (I've had luck on other devices being sequential mac addresses.) (65,536 addresses)

I opted for the second, doing the first if I got no hits from it.

# Define the known part of the MAC address (vendor prefix)
vendor_prefix="c4:65:16:b8"

# Loop through possible combinations for the last two octets
for i in {0..255}; do
  for j in {0..255}; do
    # Convert the numbers to hexadecimal and format them as two digits (00 to FF)
    hex_i=$(printf "%02x" $i)
    hex_j=$(printf "%02x" $j)

    # Construct the full MAC address
    mac_address="${vendor_prefix}:${hex_i}:${hex_j}"
    echo "Trying $mac_address..."

    # Send WOL packet
    wakeonlan $mac_address
  done
done

cowritten by chatGPT

It ran for about 10 minutes, and got nothing. If every 1st block took 10 minutes to run, it would mean they would all take 42 hours!

I realized at this point, I was better off waiting for school to get out.

For as why none of it worked, Most likely I never even turned wake on lan on. I never got into troubleshooting what the root cause was either.

Oh, and i just looked, its mac address is c4:65:16:b6:ff:3d. It didn't even share the same 3rd block.

Moral of the story, don't try brute forcing wake on lan unless you know if you actually enabled it in the bios.
